Description:

• Ariens® AX 223CC engine with electric start
• Strong cast-iron gear case
• Ariens exclusive Rapidtrak™ technology​ is capable of tackling any terrain

Specification:

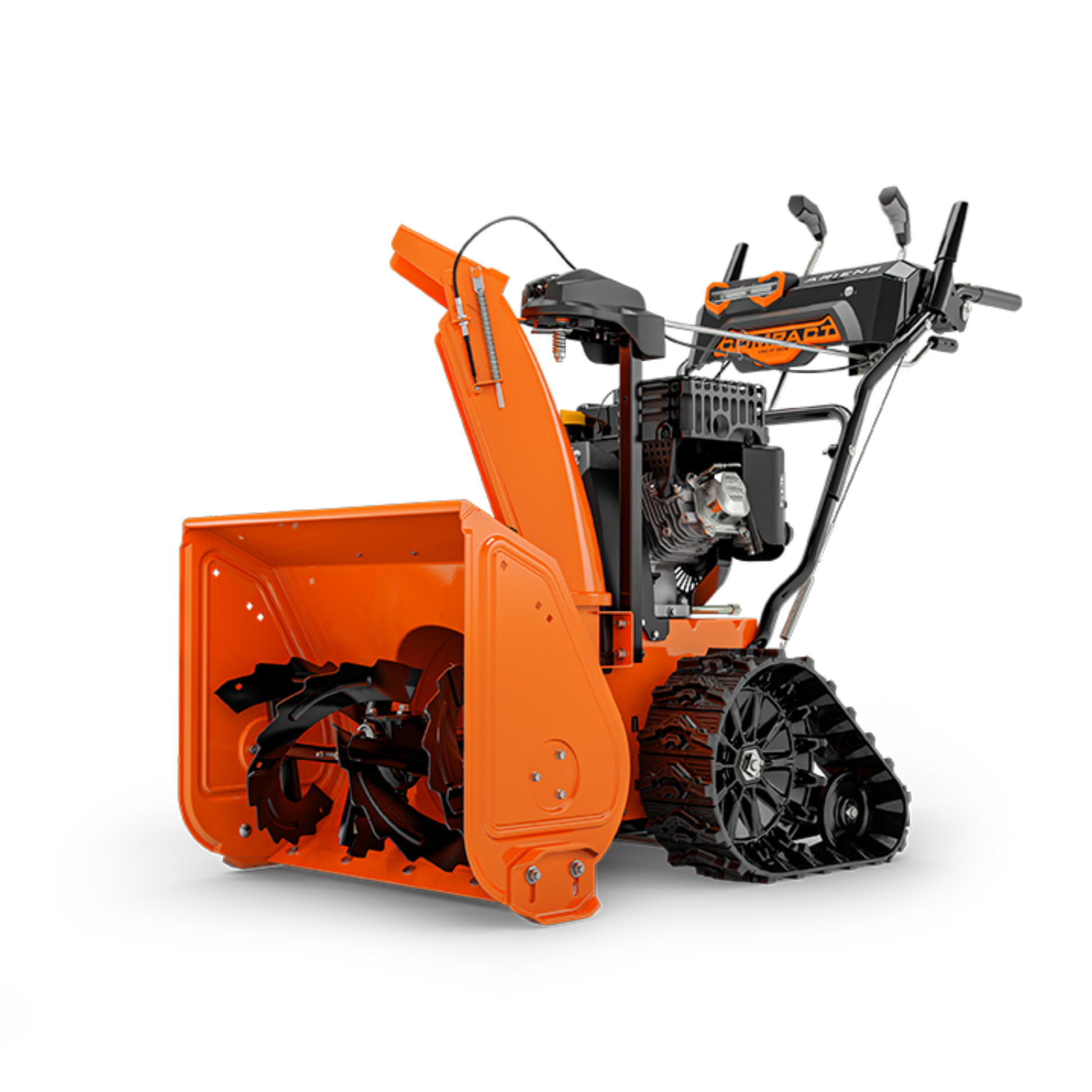

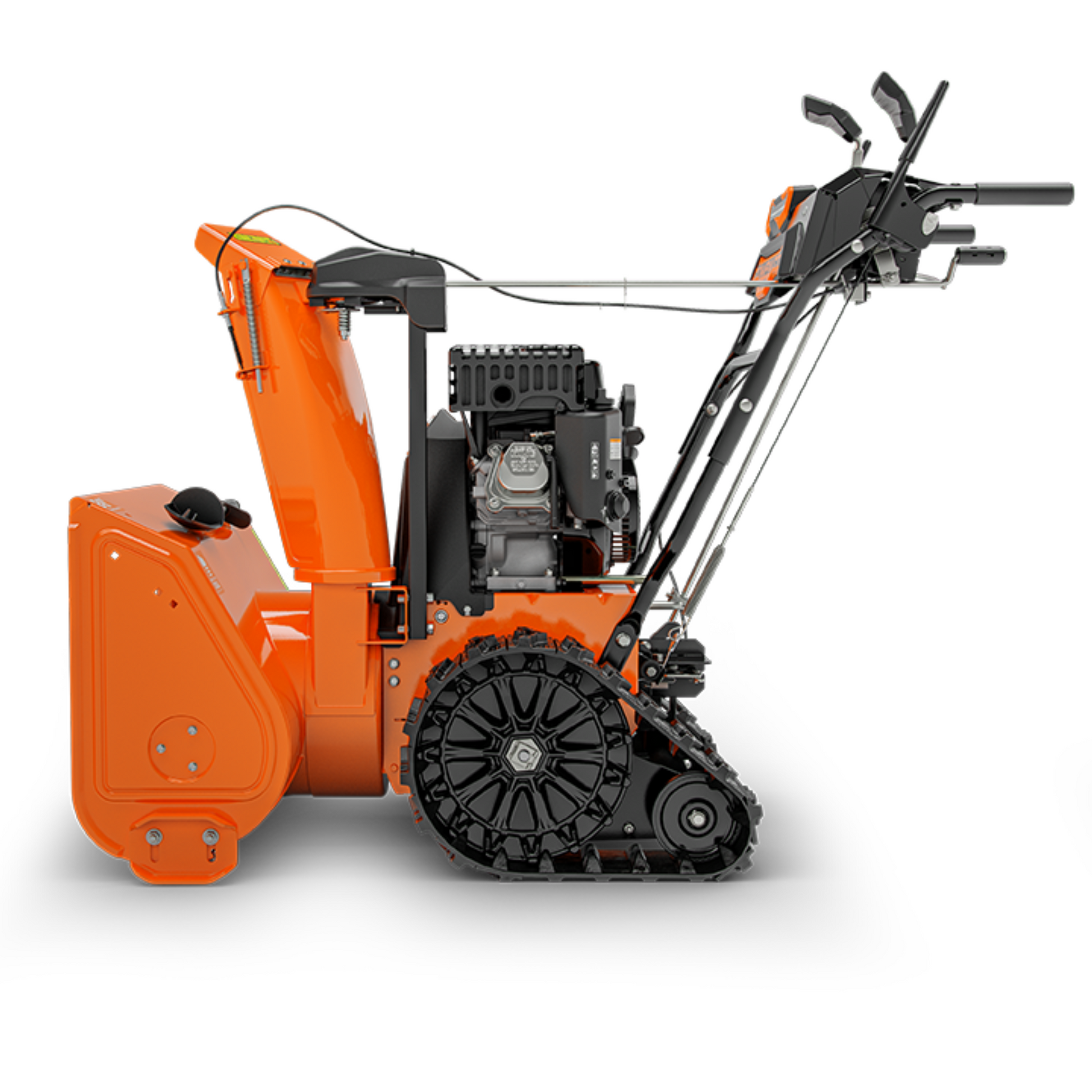

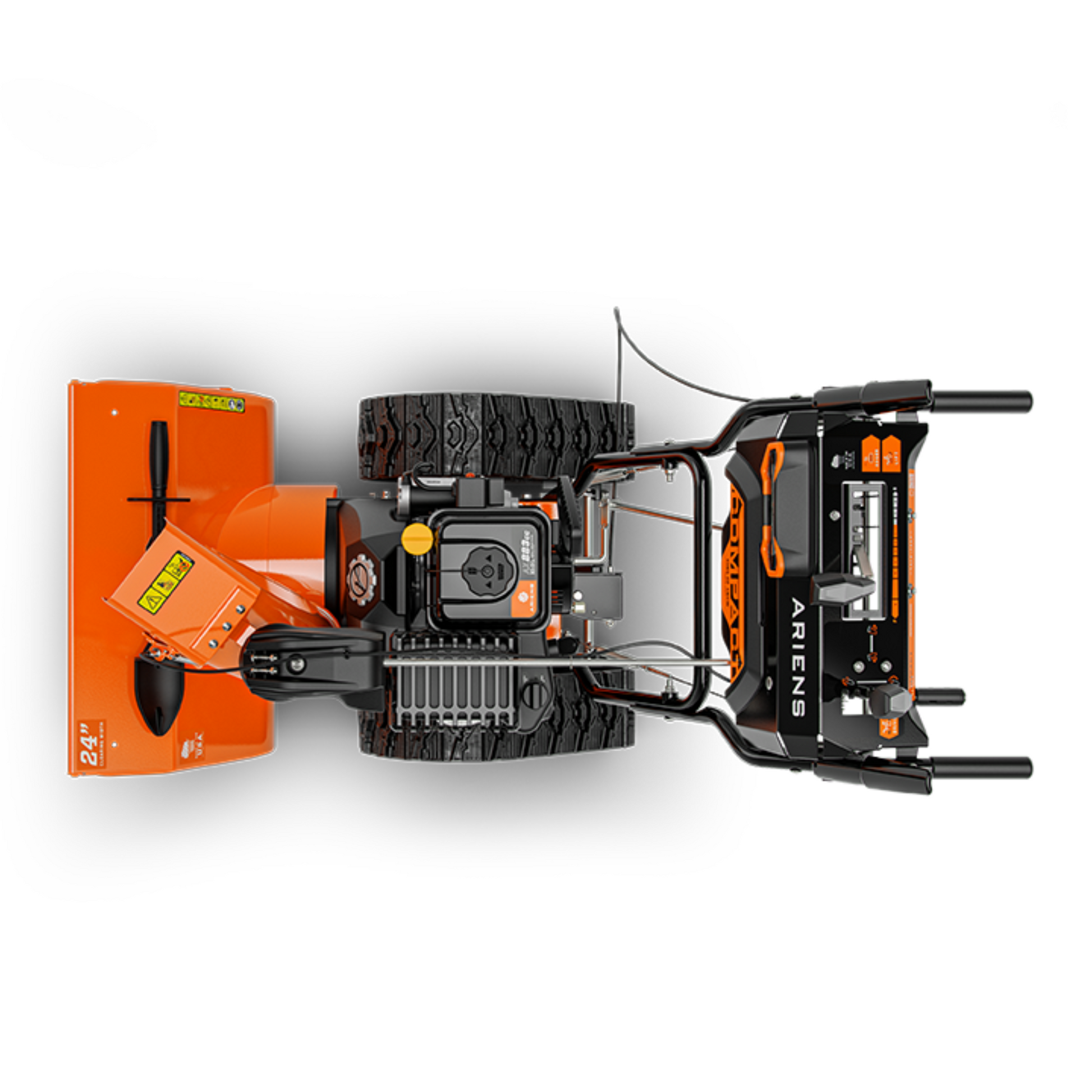

Title: COMPACT 24 RAPIDTRAK

Model Number: 920032

Power Train:

• Engine: Ariens AX®
• Starting System: 120v / Electric
• Steering: Auto-Turn
• Drive Type: Disc-O-matic
• Speeds: 6 Forward / 2 Reverse
• Tire Type: Directional Snow Track

Clearing Specs:

• Clearing Width: 24 in / 61 cm
• Housing Height: 20 in / 50.8 cm
• Throwing Distance: 3 ft - 40 ft / 0.9 m - 12.2 m
• Chute Rotation: 2.5x Quick Turn
• Chute Turning Radius: 205°
• Deflector Control: In-Dash Lever
• Stage Type: Two Stage
• Auger Diameter: 11 in / 27.9 cm
• Auger Type: Steel Serrated
• Impeller Profile: Steel 3 Blade
• Impeller Diameter: 12 in / 30.5 cm
• Skid Shoes: Steel Reversible
• Scraper Bar: Steel Adjustable
• Gear Case: Cast Iron

Dimensions:

• Length: 53.3 in / 135.7 cm
• Width: 26.4 in / 67 cm
• Height: 44 in / 111.8 cm
• Weight (Assembled): 220 lb / 99.8 kg

Warranties:

• Product Warranty: 3 years residential use, 90 days commercial use
• Gear Case Warranty: 5 Year Consumer, 1 Year Commercial

Accessories:

• Features at a Glance:
• Light Type: LED
• Handwarmers: Optional
• Remote Deflector Control: Standard
• Drift Cutters: Optional
• Track Drive: Standard
• One Hand Interlock: Standard
