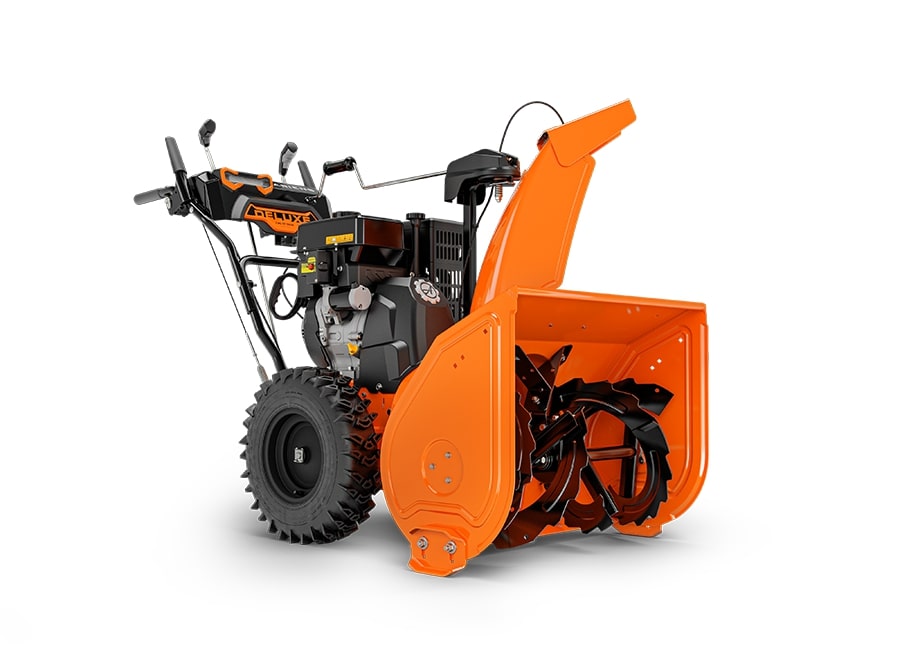

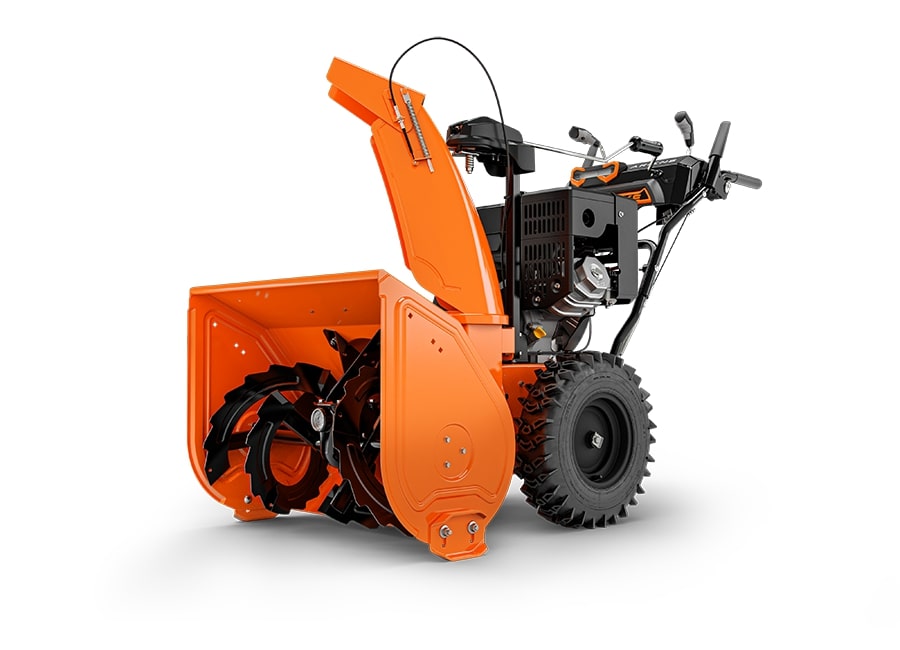

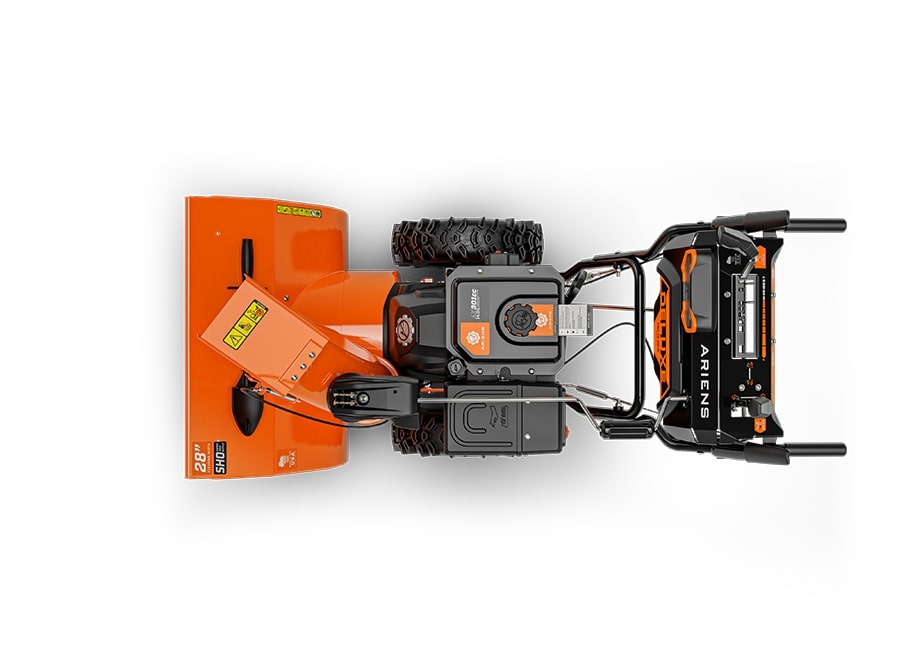

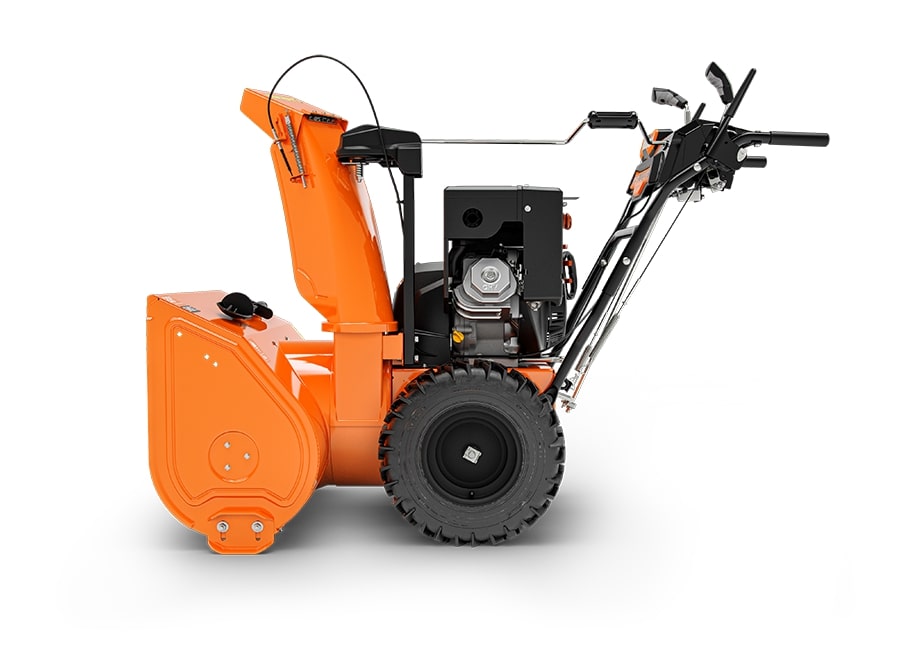

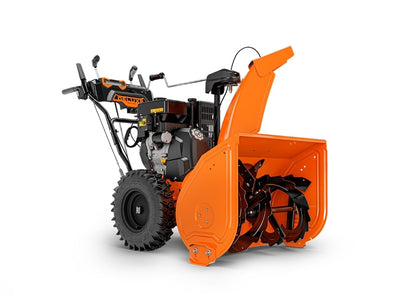

Description:

Features:

• Wide 28” clearing width that moves 72 tons of snow per hour
• Powerful Ariens AX 301cc engine with a 14" Super High Output impeller
• Premium features like Auto-Turn and an LED headlight

Specifications:

• Powertrain:
• Engine: Ariens AX®
• Starting System: 120v / Electric
• Steering: Auto-Turn
• Drive Type: Disc-O-matic
• Speeds: 6 Forward / 2 Reverse
• Tire Size: 16 in (40.6 cm)
• Tire Type: Directional Snow Tread
• Clearing Specifications:
• Clearing Width: 28 in (71.1 cm)
• Housing Height: 21 in (53.3 cm)
• Throwing Distance: 3 ft - 55 ft
• Chute Rotation: 2.5x Ice Drill
• Chute Turning Radius: 200°
• Deflector Control: In-Dash Lever
• Stage Type: Two-Stage
• Auger Diameter: 14 in (35.6 cm)
• Auger Type: Steel Serrated
• Impeller Profile: High Speed Steel 3 Blade
• Impeller Diameter: 14 in (35.6 cm)
• Skid Shoes: Steel Reversible
• Scraper Bar: Steel Adjustable
• Gear Case: Cast Iron
• Dimensions:
• Length: 58.6 in (148.8 cm)
• Width: 29.9 in (75.9 cm)
• Height: 45.3 in (115.1 cm)
• Weight (Assembled): 239.3 lb
• Warranties:
• Product Warranty: 3 years residential use, 90 days commercial use
• Gear Case Warranty: 5 years consumer, 1 year commercial
• Accessories:
• Light Type: LED
• Handwarmers: Optional
• Remote Deflector Control: Standard
• Drift Cutters: Optional
• One Hand Interlock: Standard
